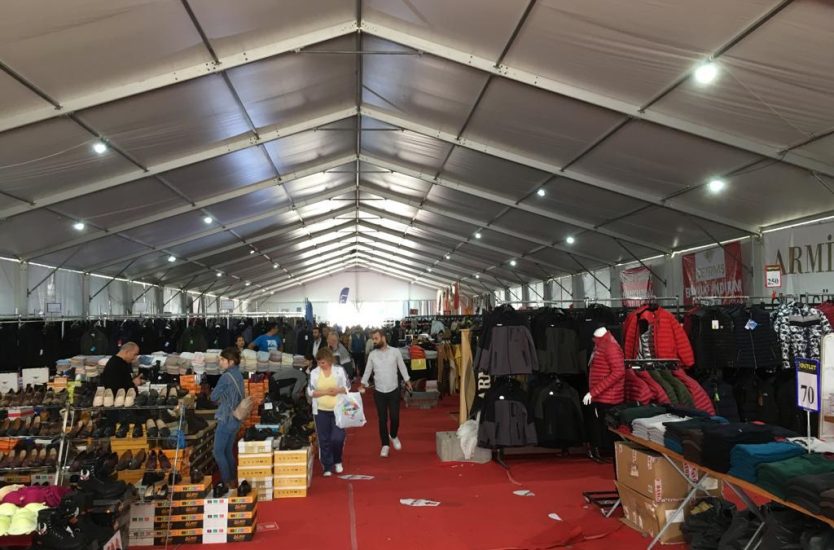

Experience the true benefit of an A-frame clear span structure. With no internal pillars or central poles, Shoulder Tent provides a completely unobstructed interior, maximizing usable area for industrial storage or spacious event layouts.
Engineered for longevity, our tents feature high-pressed extruded aluminum alloy frames. This durable construction ensures superior wind load resistance and stability, making it a safe, reliable solution for semi-permanent or permanent outdoor buildings.
Adapt to any requirement with our flexible modular tent system. The length can be unlimitedly extended by adding 3m or 5m bays. This allows for rapid installation and easy expansion to meet growing warehousing or commercial event needs.
Protected by double PVC-coated polyester textiles, our roof covers are waterproof, UV-resistant, and flame-retardant(DIN4102 B1/M2). Shoulder Tent ensures your assets or guests stay safe in diverse weather conditions.








| Main Profile | High-strength Aluminum Alloy 6061/T6. |
| Connection | Hot-dip galvanized steel components. |
| Wind Load | 100 km/h – 120 km/h (0.5 kN/m²). |
| Snow Load | 1.9kn/㎡. |
| Lifespan | 20+ years for the aluminum frame. |
| Feature | Modular design, no welding required, 100% relocatable. |
| Span Width | Side Height | Ridge Height | Bay Distance | Main Profile |
| 15m | 4m | 6.4m | 5m | 166x88x3mm |
| 18m | 4m | 6.9m | 5m | 166x88x3mm |
| 19m | 4m | 7m | 5m | 166x88x3mm |
| 20m | 4m | 7.2m | 5m | 204x110x4mm |
| 22m | 4m | 7.6m | 5m | 204x110x4mm |
| Roof Cover Weight | 850g/sqm (Block-out / Opaque). |
| Sidewall Weight | 650g/sqm (Translucent) or 850g/sqm. |
| Fire Safety | DIN 4102 B1, M2; CFM certified. |
| Temperature Resistance | -30°C to +70°C. |
| Key Features | Waterproof, UV-resistant, Tear-resistant, Anti-mildew. |
| Wall System | Glass Wall, ABS Solid Wall, Sandwich Panel Wall. |
| Door System | Double-wing Glass Door, Industrial Rolling Shutter, Sliding Door. |
| Flooring System | Cassette Flooring, VIP Wooden Floor. |

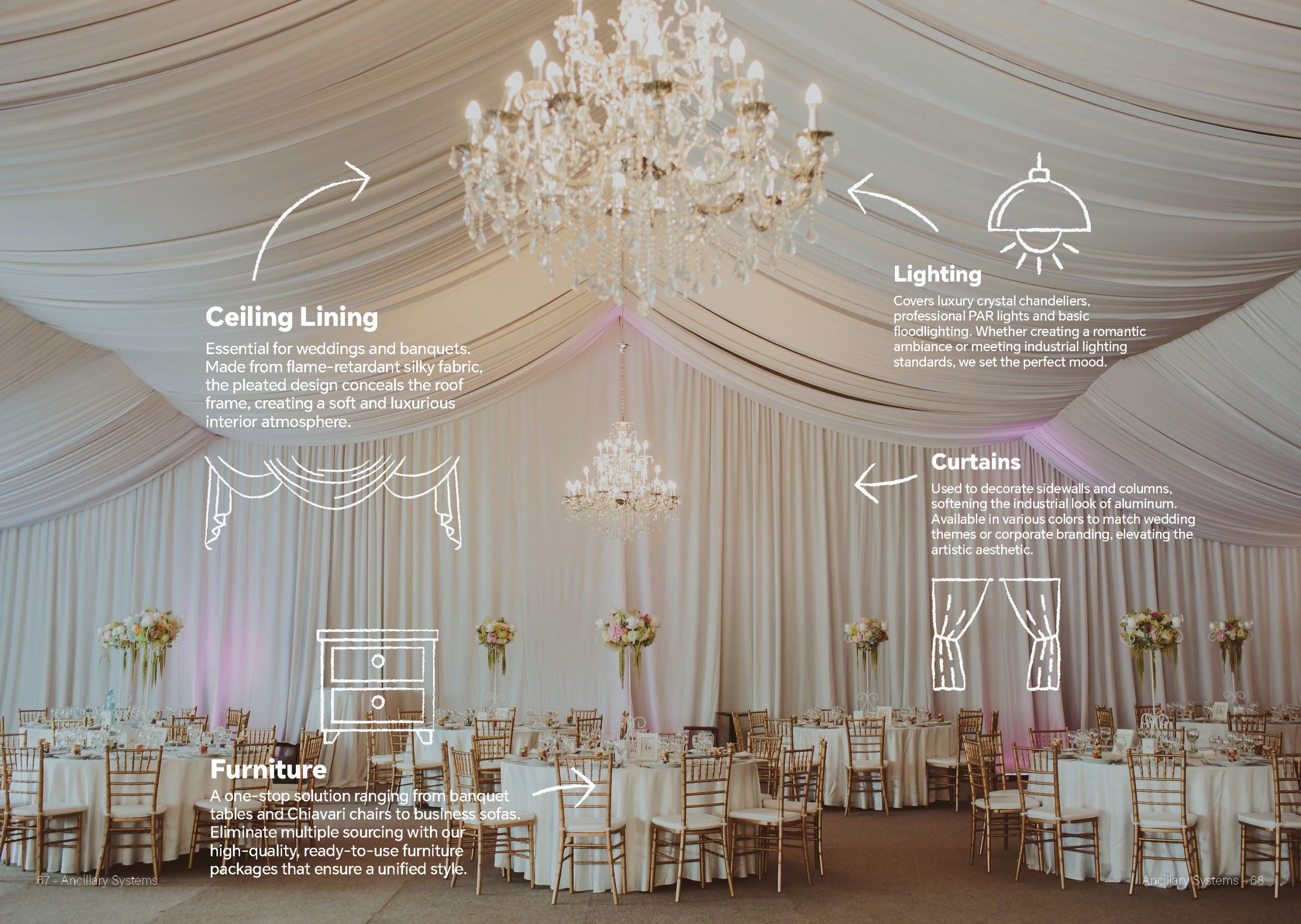

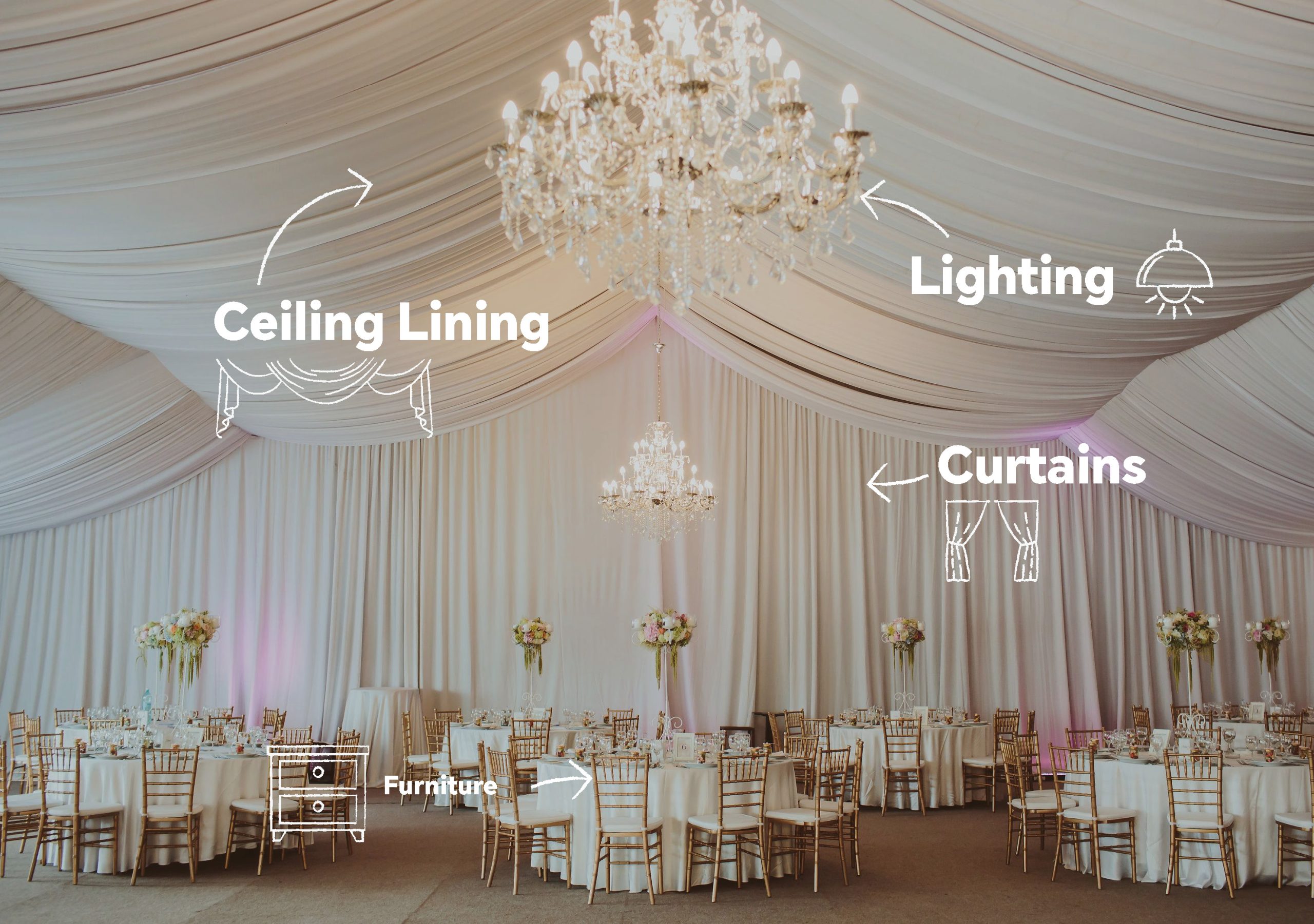

| Interior | Roof Lining, Side Curtains, Lighting System, AC Units. |
| Main Profile | High-strength Aluminum Alloy 6061/T6. |
| Connection | Hot-dip galvanized steel components. |
| Wind Load | 100 km/h – 120 km/h (0.5 kN/m²). |
| Snow Load | 1.9kn/㎡. |
| Lifespan | 20+ years for the aluminum frame. |
| Feature | Modular design, no welding required, 100% relocatable. |
| Span Width | Side Height | Ridge Height | Bay Distance | Main Profile |
| 15m | 4m | 6.4m | 5m | 166x88x3mm |
| 18m | 4m | 6.9m | 5m | 166x88x3mm |
| 19m | 4m | 7m | 5m | 166x88x3mm |
| 20m | 4m | 7.2m | 5m | 204x110x4mm |
| 22m | 4m | 7.6m | 5m | 204x110x4mm |
| Roof Cover Weight | 850g/sqm (Block-out / Opaque). |
| Sidewall Weight | 650g/sqm (Translucent) or 850g/sqm. |
| Fire Safety | DIN 4102 B1, M2; CFM certified. |
| Temperature Resistance | -30°C to +70°C. |
| Key Features | Waterproof, UV-resistant, Tear-resistant, Anti-mildew. |
| Wall System | Glass Wall, ABS Solid Wall, Sandwich Panel Wall. |
| Door System | Double-wing Glass Door, Industrial Rolling Shutter, Sliding Door. |
| Flooring System | Cassette Flooring, VIP Wooden Floor. |
| Interior | Roof Lining, Side Curtains, Lighting System, AC Units. |

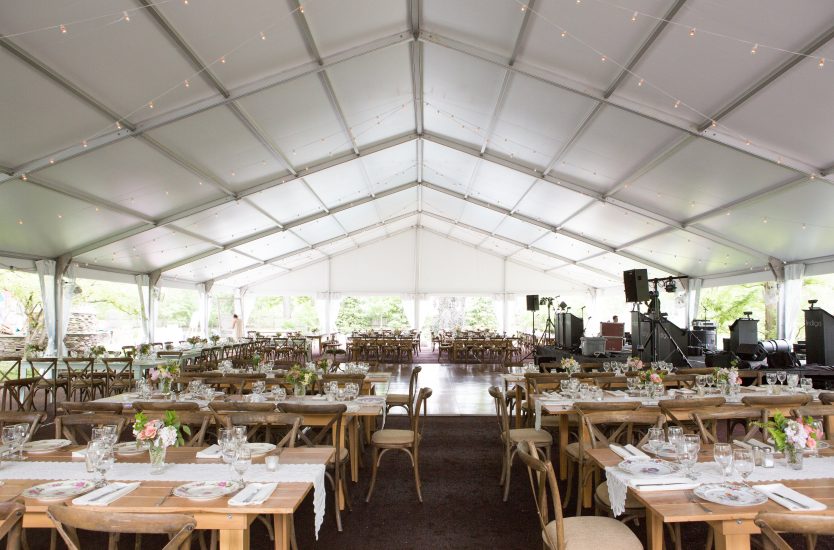

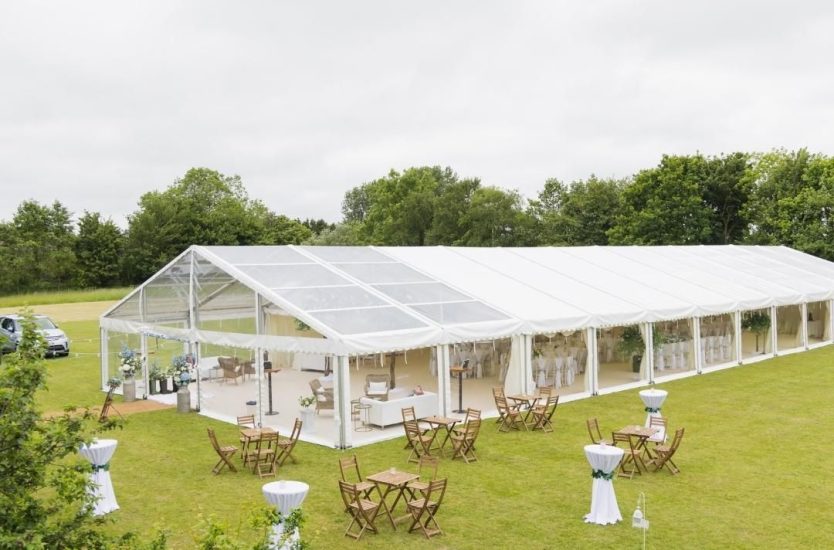

The most significant advantage of an A-Shape Clear Span Tent is its structure. Unlike traditional pole tents, our clear span design requires no internal center poles or supports. This guarantees 100% interior space utilization, allowing for flexible layouts—whether for forklift operations in an industrial warehouse or unobstructed views for guests at a wedding event.
Our tents are engineered for safety and durability. The main framework is manufactured from hard-pressed extruded aluminum alloy (6061/T6), which is much stronger than steel tubes. Depending on the size and profile, our A-Shape structures can withstand wind loads of 100km/h to 120km/h (62-75 mph), making them suitable for harsh outdoor environments.
Yes, they are an excellent alternative to traditional concrete buildings. Our industrial marquee tents are designed for semi-permanent or permanent use (15-20+ years for the frame). With options like ABS solid walls, sandwich panels, and steel rolling doors, they provide a secure, weather-tight solution for logistics, manufacturing workshops, and temporary warehousing.
Absolutely. Safety is our priority. All PVC fabrics used in Shoulder Tent products are waterproof, UV-resistant, and strictly compliant with international fire safety standards, specifically DIN 4102 B1, M2 (European Standard) and CFM requirements. This certification is essential for obtaining permits for commercial events and public gatherings.
